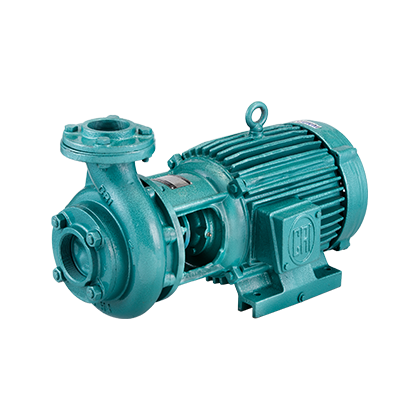

C.R.I. Centrifugal Monoblock Pumpsets are powered by a totally enclosed fan cooled AC induction two pole and four pole motor, suitable for continuous duty.
Construction of motor frame and usage of quality materials result in high performance and low temperature raise, thereby increasing the life cycle of the motor.
Applications
- Irrigation & agriculture
- Farms
- Garden
- Industrial
- Domestic
- Sprinkler & drip irrigation
- Robust construction ensures longer life
- 3D Heat transfer technology ensures low temperature rise
- Dynamically balanced rotating parts to ensures minimum vibration & long life
- High operating efficiency resulting in lower power consumption
- Specially designed for wide voltage operation
- Good suction lift characteristics
Power Range | 2.2 kW – 15 kW (3 HP – 20 HP) |
Voltage Range | Three-Phase, 350/ 380 / 415V, 50Hz, AC Supply |
Maximum Total Head | 94 Metre |
Maximum Flow Rate | 33 lps (118.8 m3/hr) |
Part Name | Material |
---|---|
Pump Casing | Cast Iron |
Impeller | Cast Iron / Lead Bronze |
Motor frame | Cast Iron |
Bracket | Cast Iron |
Shaft | SS 410/Mild Steel |
