VIRAT Series - CRI Groups

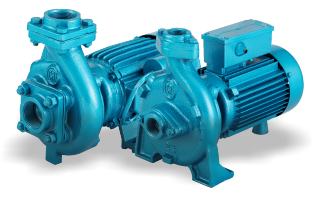

C.R.I. Centrifugal Monoblock pumpsets are powered by a totally enclosed fan cooled AC induction two pole motor.

Motor stator is made of low watt loss silicon steel laminations assembled under pressure and rigidly locked in the frame. Construction of motor frame and usage of quality materials result in high performance and low temperature rise thereby increasing the life cycle of the motor.

Applications

Domestic
Irrigation
Farms
Gardens
Pressure boosting
Civil applications

BROCHURE
REQUEST A QUOTE
REQUEST A QUOTE
REQUEST A QUOTE

Name*

Email*

Phone*
City*

Pincode*

Product

Message
CAPTCHA
Email
This field is for validation purposes and should be left unchanged.

High operating efficiency ensures more discharge
Optimised hydraulic design for efficient performance
Good suction lift characteristics
In-built thermal over load protector, protects the motor from over load fault
Double shielded ball bearings ensures reliable operation of the pumpset
Specially designed for low voltage operation

Power Range	0.37 kW – 1.5 kW (0.5 HP – 2 HP)
Version	Single phase – 220/240V; Three phase – 380/415V 50Hz AC Supply.
Maximum Total Head	34 metre
Maximum Flow Rate	9 lps (32.4m /hr)

Part Name	Material
Impeller	Cast Iron & Noryl
Pump Casing	Cast Iron
Motor frame	Cast Iron /aluminum
Bracket	Cast iron
