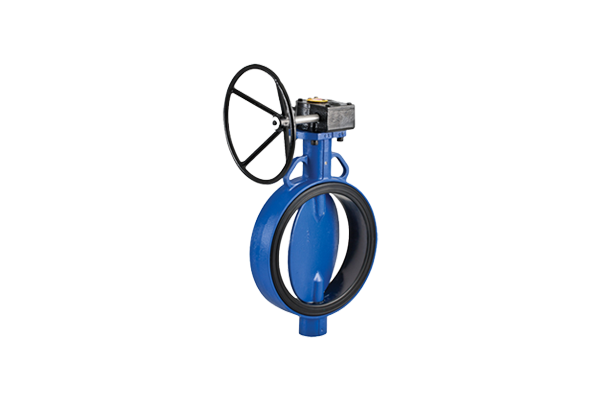

Gear Operated Butterfly Valve

Gear Operated Butterfly Valve

Home > Gear Operated Butterfly Valve

C.R.I. Valves is a part of C.R.I. Pumps, the Valves Division of C.R.I. is located in Coimbatore and was incepted to meet the growing demand for quality valves that are suitable for multitude of applications in the fluid control systems.

We design, manufacture and supply valves in special materials, such as Carbon Steel, Stainless Steel. Our valves are delivered worldwide and cater to meet various customer demands including Power plants, Distillery, Paper and Pulp Industry, Sugar Industry, HVAC, Water treatment plants, Construction Industry, Chemical and Pharmaceutical Industries.

The infrastructure of C.R.I. is pretty comprehensive with state-of-the art machineries and a high potential R&D wing. The team always stay in tune with the changing scenario and seldom fails in coming up with outstanding solutions every time.

Manufactured in a State-of-the Art facility backed up with in house Steel Foundry, C.R.I valves meet the exacting demands of a variety of applications.

  • BROCHURE
  • REQUEST A QUOTE

    REQUEST A QUOTE

    REQUEST A QUOTE

    • This field is for validation purposes and should be left unchanged.
  • Specifications
  • Design Codes and Standards
Type of valve Centric Disc Butterfly valve with Rubber Lined Body
Body Type Single Piece, Short wafer or wafer lugged
Seal Type Integrally Bonded & Replaceable
Size Range DN50 to DN600
Pressure Rating PN10 / PN16
Operating Temperature Range -30ºC to 130ºC (Depending on MOC
Seal Leakage Performance Tight Shut Off
Operation Hand Lever Operation – DN50 – DN300
Worm Gear Operation – DN50 – DN600
Electrical / Pneumatic Actuator Operation –  Optional
General design and manufacture EN 593 / API 609 / IS 13095
Valve face to face dimension ISO 5752
Top flange drilling ISO 5211
Valve inspection and testing API 598 / IS 13095
Flange standard conformity ANSI 125 / ANSI 150 / BS 10
TAB D & E / IS 6392 NP 1.0 & 1.6
DIN 2501 – PN10 & PN16
