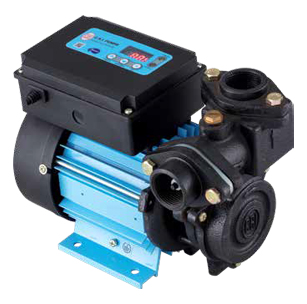

C.R.I. is proudly introducing the new Intelligence Smart Mini Pump with complete solution of water pumping.

i-SMART pumps are specially designed for efficient and trouble free performance. The integrated system protects the pump from dry run operation, over load fault and sudden voltage variation. The pump controller unit equipped with inbuilt timer which helps to run the pump with real time run as well as scheduled time run, so it enhance the effective running and low power consumption of pumpset. The digital LED display supports to set the time and helps to monitor the voltage and current values.

Float switch sense the over head tank water level and runs the pump automatically.

Applications

Household water applications
Small garden
Civil application
Pressure boosting system

BROCHURE
REQUEST A QUOTE
REQUEST A QUOTE
REQUEST A QUOTE

Name*
Email*

Phone*
City*
Pincode*
Product
Message
By continuing you agree to our privacy policy
CAPTCHA
Name
This field is for validation purposes and should be left unchanged.

Efficient way of run ensures power savings
In built timer with 24Hrs Real time settings
Auto / manual
Dry Run prevention/ over load/ low & high voltage
Available. sense automatically through float switch
In built LED display

Model Name	I-SMART
Power Range in HP/kW	0.5HP and 1HP
Maximum Head	40 Metre
Maximum Flow	3150 LPH
Version	Single Phase 220 V, AC Supply
Pipe Size(S * D)	25 * 25mm

Part Name	Material
Pump Casing	Cast Iron
Bracket & Rear Cover	Cast Iron
Motor Body	Aluminium Extruded
Rotor	Aluminium Die Cast
Motor Shaft	SS 410
Impeller	High Tensile Brass
