MINI PUMPS

Home > Pumps > MINI PUMPS
Mini Pump:

CRI’s Mini Pumps are designed to be reliable and long-lasting. CRI’s mini water pump comes with a wide range of features.

Basics of Mini Pump:

A mixture of water air is used to reach a state of the fully primed pump. A low-pressure zone at the center is created, when the impeller located inside the casing rotates. The pressure difference inside the casing and the outside air causes a suction effect that results in water moving up the suction pipe. The self-priming pump mixes the air with recirculating water, all the air in the suction pipe is displaced and the water is discharged.

  • BROCHURE
  • REQUEST A QUOTE

    REQUEST A QUOTE

    REQUEST A QUOTE

    • This field is for validation purposes and should be left unchanged.

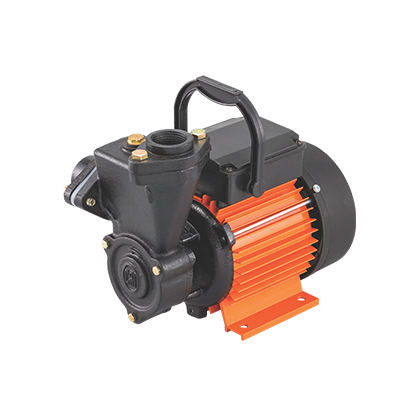

Mini Pumps
Mini Pumps
Mini Water Pumps

Applications

Domestic
Small garden
Pressure boosting
Civil applications
  • Features
  • Specifications
  • Material of Construction
  • Built-in with imported Thermal Overload Protector
  • Specially designed for wide voltage fluctuations
  • Powder coated multi-color stator body
  • Sturdy and compact
  • Double sealed ball bearing
  • Pumpset available with extension shaft
Power 0.18kW - 1.1kW (0.25HP - 1.5HP)
Version Single Phase 220-240V, Three Phase 380-415V; 50Hz, AC Supply
Maximum Total Head 100 Metre
Maximum Flow Rate 3800 lph (3.8 m3 /hr)
Part Name Material
Motor Body Aluminium Extruded
Motor Shaft SS 410
Impeller High Tensile Brass
Volute Casing Forged SS / Brass
